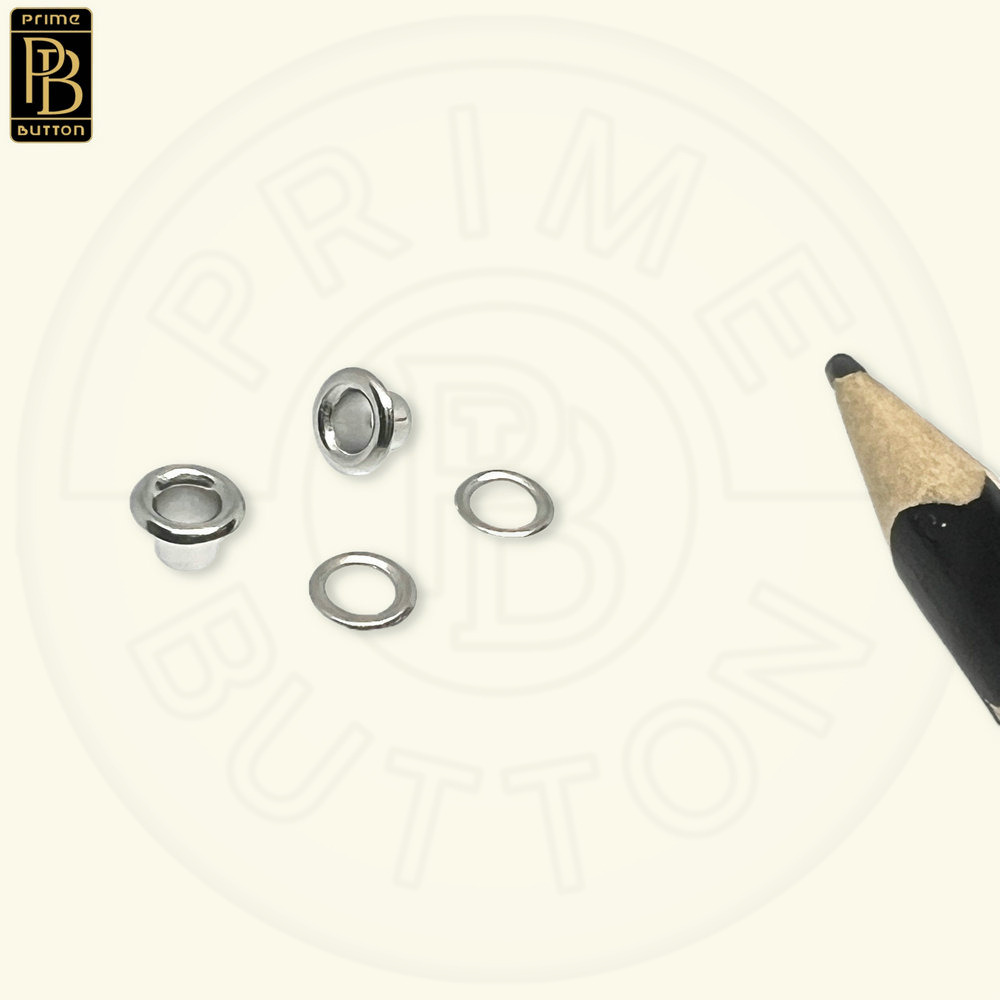

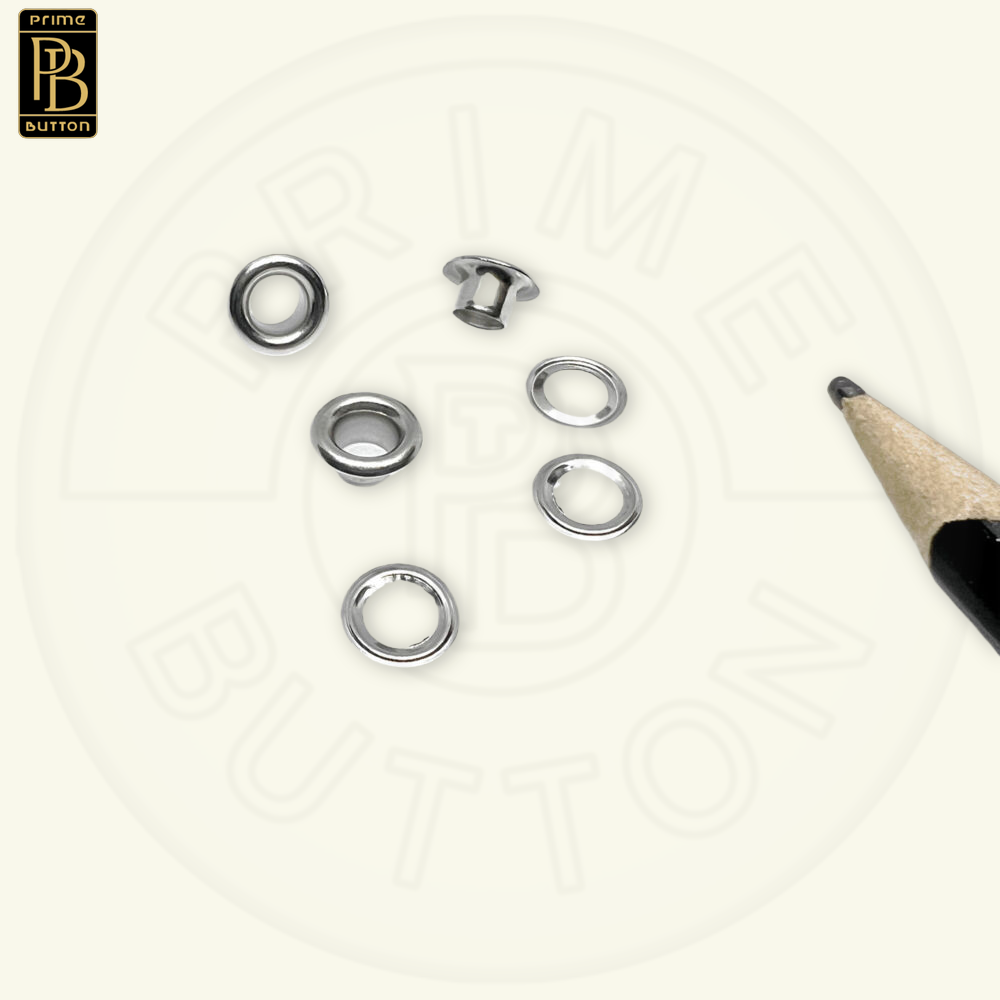

PRIME BUTTON Metal Eyelets, can be made of iron, stainless steel 201 & 304, and brass materials. There are different eyelet shapes and matching washers, while the most common shape is round.

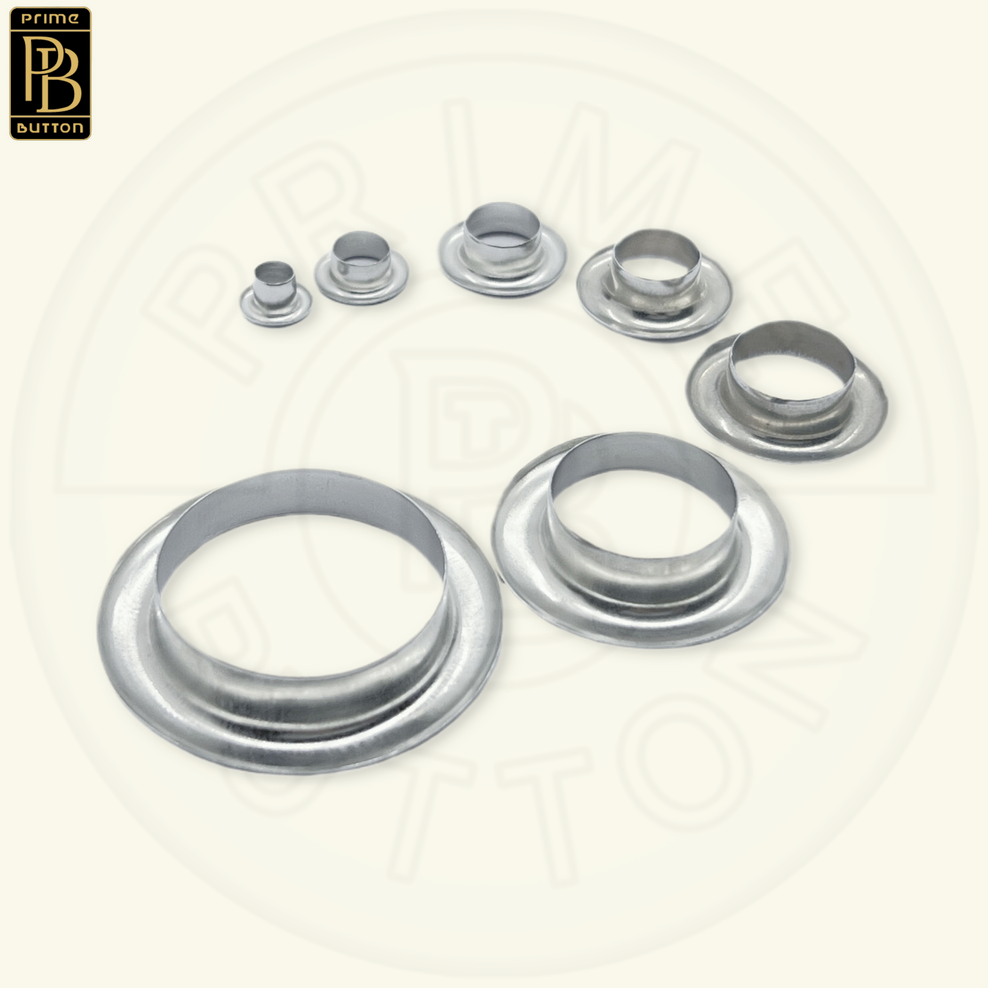

Eyelets and grommets inner hole from 2mm to 42mm, for different usage on garments, bags, leather belts, shoes, hats and curtains.

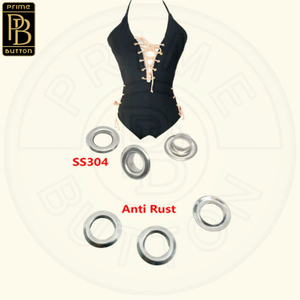

Stainless steel 304 eyelets are developed to meet the stronger rust-resistance performance, for the projects on swimwear, outdoor and medical articles.
Colors can be made following up Prime Button color charts or customized, and putting LOGO on is common.
Eyelets Sizes
Eyelet Item No. | Outer Diameter (mm) | Inner Diameter (mm) | Height (mm) |
6# | 6 | 3 | 4 |
4# | 8 | 4 | 4.5 |
3# | 9 | 5 | 4.5 |
2# | 10 | 5 | 4.5 |
20# | 10.5 | 6 | 4.5 |
21# | 12 | 6.5 | 5 |
22# | 14 | 8 | 5.5 |
23# | 15 | 8 | 5 |
200# | 17 | 9 | 5.5 |
24# | 16.5 | 10 | 5 |
25# | 19 | 11 | 6 |
26# | 20.5 | 12 | 6 |
28# | 23 | 13 | 6 |
Eyelet Item No. | Outer Diameter (mm) | Inner Diameter (mm ) | Height (mm) |
300# | 50 | 30 | 8 |
400# | 63 | 42 | 7 |
Eyelets Application
